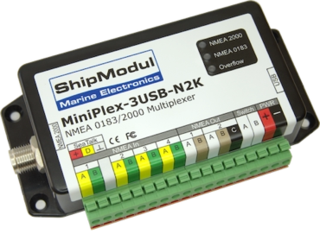

MiniPlex-3USB-N2K er en avansert multiplekser/gateway som kombinerer NMEA 0183 data fra flere kilder til en datastrøm. Gateway funksjonen sikrer toveis konvertering mellom NMEA 0183 og NMEA 2000.Enheten har 2 stk NMEA 0183 utganger og 1 stk USB port. Mottatte NMEA 0183 setninger kan rutes individuelt til hver av disse. USB porten er toveis (bi-directional). Den kan sende NMEA 0183 data til en tilkoblet pc, og på samme tid motta NMEA 0183-data som skal rutes til en eller begge NMEA 0183-utgangene. Denne multiplekseren støtter datahastigheter på inntil 115200 baud.
Fra produsent:
SeaTalk
Input 1 can be set to SeaTalk mode, so it can transmit and receive SeaTalk data. Received SeaTalk data is converted to NMEA 0183 while NMEA 0183 data from any input or USB port can be selectively routed and converted to the SeaTalk port.
All NMEA 0183 inputs, outputs and USB port are galvanically isolated, thus preventing any chance of ground loops.
A comprehensive set of features include routing/filtering of NMEA 0183 sentences, numerous conversions, prioritisation of data etc. make the MiniPlex-3USB the ultimate solution for any interfacing requirement.
NMEA 2000 Gateway
The MiniPlex-3USB-N2K also serves as a multiple gateway between NMEA 0183 and NMEA 2000. Each NMEA 0183 input is visible on the NMEA 2000 network as an individual Data Source, one for each physical input, conversions and USB port: 6 in total.
Using the Routing Table, data from every possible NMEA 2000 source can be routed to the USB port and/or both NMEA 0183 outputs.
