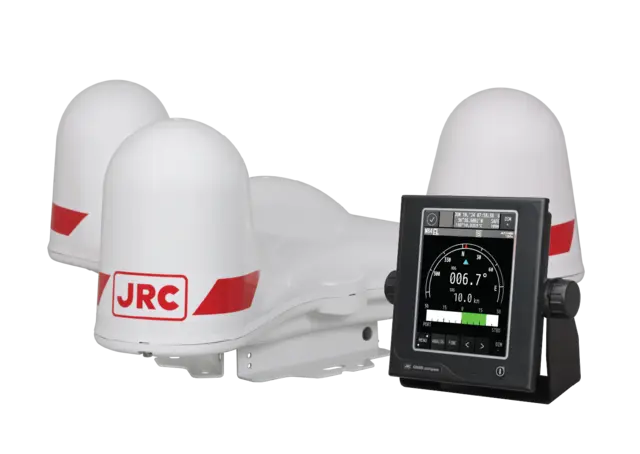

JLR-41 GNSS kompass med 30m kabel

JLR-41 GNSS kompass

med 30m kabel

Varenr:JLR-41

Logg inn for å se dine priser.
Ønsker du å bli forhandler? Registrer deg her

Beskrivelse
Teknisk info

JRC JLR-41 er et profesjonelt multi-GNSS kompass med svært høy nøyaktighet. IMO-godkjent som både GNSS & THD!

I tillegg kan nye JLR-41 nå detektere og varsle forsøk på spoofing og jamming-forsøkt. Krever egen tilleggslisens.

Spesifikasjoner

Sensor JLR-4101

Receiver System	GPS / Galileo / GLONASS / BeiDou / QZSS
Receiver Type	GPS+QZSS: 15 ch SBAS: 1 ch Galileo + GLONASS or Galileo + BeiDou: 10 ch
Receiving Frequency	1575.42 MHz (GPS / Galileo / SBAS / QZSS) 1598.063 - 1605.375 MHz (GLONASS) 1561.098 MHz (BeiDou)
Course Accuracy	0.25° RMS
Attitude Accuracy (Roll)	0.4° RMS
Attitude Accuracy (Pitch)	0.4° RMS
Attitude Accuracy (Heaving)	5 cm RMS
Course Resolution	0.1° / 0.01°
Speed Resolution	0.1 kn / 0.01 kn
Attitude Resolution	0.1°
Tracking Rate of Turn	45°/sec
Start-up Time	Less than 2 minutes (warm start fix, typically 30 seconds)
SBAS Receiver	WAAS, MSAS, EGNOS
Positional Accuracy	Multi-GNSS (PPP positioning) : 1.8 m (2DRMS) (HDOP ? 4 SA OFF) Multi-GNSS (non-PPP positioning) : 4 m (2DRMS) DGPS : 4 m (2DRMS) SBAS : 4 m (2DRMS) GPS or GPS + QZSS : 5 m (2DRMS) GLONASS : 10 m (2DRMS) Galileo : 6 m (2DRMS) BeiDou : 10 m (2DRMS)
Spoofing/Jamming	Can be detected (license require)

Display NWZ-1680

Display Unit	6.5-inch TFT color touch panel LCD, 640x480 dots (VGA) / Brightness: 800 cd/m²
Display Modes	Heading, navigation information, plot, analog, highway, satellite information, waypoint information, beacon text, navigation aid
Power	12/24 VDC ( +30 %, -10 % )
Power Consumption	Less than 14 W ( including sensor )

Interface

Port	IEC 61162-1 : (input) 1 port, (output) 2 ports IEC 61162-2 : (output) 1 port LAN (IEC 61162-450) : 1 port Sensor through (IEC 61162-1) : (output) 2 ports Dry contact: (input) 1 port, (output) 3 ports
NMEA 0183 Version	Ver1.5 / 2.1 / 2.3 / 4.0
NMEA 0183 Input Sentence	ACK, ACN, DDC, HBT, POS
NMEA 0183 Output Sentence	AGL, ALC, ALF, ALR, ARC, DDC, DTM, GBS, GGA, GLL, GNS, GRS, GSA, GST, GSV, HBT, HDT, HRM, MSS, RMC, POS, ROT, THS, VTG, ZDA

Environmental Conditions

Operating Temperature	Sensor : -25 to +55 ? , Display Unit : -15 to +55 ?
Storage Temperature	Sensor : -25 to +70 ? , Display Unit : -25 to +70 ?
Degree of Protection	Sensor : IP56, Display Unit : IP56

Components

Standard Components

Name	Model	Qty
Sensor	JLR-4101	×1
Display Unit	NWZ-1680	×1
Power Cable	CFQ-5770A	×1
Data Cable	CFQ-7248	×1
Data Cable	CFQ-5771B	×1
Instruction Manual	English : P00011567	×1
Bridge Card	English : P00022759	×1

Option

Name	Model
Data Cable (30 m)	CFQ7248-30
Extension Cable (10 m)	CFQ7249-10
Extension Cable (20 m)	CFQ-7249
Junction Box	NQE-7720
Beacon Connecting Cable	CFQ-7250
Installation Trestle	P00004089
Bird Repellent Rod	P00015258
Power Cable	CFQ-5770D
Data Cable (10 m)	CQQ-5771D
Ethernet Cable (15 m)	CFQ-7540
Base Kits	MPBX50347
Select Switch	NCZ-777
Select Switch	NCZ-1537B
Junction Box	CQD-10
Output Buffer	NQA-4351
Printer	NKG-104
Printer	RP-D10
External Dimmer Unit	NCM-227
AC/DC Power Supply Unit	NBD-904
Conversion Cable	P00014414

Produktinformasjon

Typegodkjent	IMO
